Evaluation Of Chlorine Efficacy Against Escherichia Coli O157:H7 Survival And Cross-Contamination During Continuous Produces Washing Processwith Water Quality Change

Keywords

Chlorine Water, Escherichia Coli O157:H7, Water Quality, Produce.

Introduction

Escherichia coli O157:H7 is an enteric pathogen that can cause life threatening hemorrhagic colitis and hemolytic uremic syndrome [1]. Since 1995, there have been 22 outbreaks of E. coli O157:H7 associated with fresh lettuce or spinach [2]. Washing is one of the most critical processing steps during fresh produce preparation to inactivate pathogens on fresh-cut produces and improvetheir qualityand shelf life[3]. In recent years, hypochlorous acid, referred to as free chlorine (FC), remains the most commonly and effectively used sanitizer for fresh-cut produce processing, although other commercially available chemical sanitizers such as chlorine dioxide, ozone, acidified sodium chlorite, and peroxyacetic acid are allowed to be used during freshcut produce washes [4].The advantage of chlorinated water includesstrong bactericidal effects, minimal impact on product quality, and low cost [3, 5, 6].

In aqueous solution, FCis predominately present as hypochlorous acid (HOCl) near neutral pH, the most effective form of chlorine for disinfection [7]. Thus, sodium hypochlorite solution, at pH 6.5 adjusted by citric acid, is normally used in the fresh-cut produce industry [8]. A previous study conducted by the author showed that free chlorine concentration decreased with increasing amount of organic loads in wash waters [9]. The author also reported thatresidual free chlorine ≥0.5 mg/L with contact time of 30 sec reduced Salmonella spp., E.coli O157:H7 and Non-O157 shiga toxin E. coli populations by more than 4.5 log CFU/ml [9]. Chlorinated water typically achieved 1-2 log of microbial reduction on leafy greens [3, 10, 11]. Chlorine solution of 50-200 mg/L with contact time of 1 to 2 minutesis recommended to sanitize produce surfaces and processing equipmentby US-FDA [4].

During the process of washing fresh produce, the wash water quality deteriorates rapidly as increasing amounts of debris and plant tissue fluids accumulate in the solution. Similar to other oxidant antimicrobial agents, free chlorine is easily consumed by organic matter in the wash solutions, which creates opportunities for pathogens to survive and generate cross-contamination. The FDA recommended thatwater quality parameters including pH, organic load, and turbidity be evaluated to assure that the wash water disinfection is effective in reducingthe potential of cross-contamination between wash water and produce [11]. However, most studies addressing the efficacy of chlorinated water treatment on the microbial pathogen reduction on wash water or produce did not take into account the presence of organic materials expressed as chemical oxygen demand (COD), turbidity, and pH change [12]. Additionally, most published chlorine decontamination or crosscontamination laboratory studies were conducted by washing produceonly once, thus constituting a “onetime-event” experiment [13]. Therefore, this study aimed to evaluate the efficacy of chlorine against E.coli O157:H7 survival and cross-contamination during continuous produce-washing process taken in consideration of wash water quality change.

Materials and Methods

Bacterial strains and inoculum preparation

The two-strain mixture of E. coli O157:H7 used in this study included nalidixic acid-resistant derivatives of strains ATCC 43888 and 43889 obtained from Bacteria Strain Collection Center at Western Kentucky University. Nalidixic acid resistant strains were used to allow the selective isolation of the inoculum from natural contaminating flora. Each strain was activated (35°C,24 h) separately in 10 ml of tryptic soy broth (TSB; Difco, Becton Dickinson, Sparks, MD) plus 0.1 ml nalidixic acid (100 μg/ml, Sigma-Aldrich, Inc., St. Louis,MO), andsubcultured(0.1 ml) into the same broth at 35°C for another 24 hours. The two strains were then combined and centrifuged (Eppendorf model 5810R, Brinkmann Instruments Inc., Westbury, NY) at 4,629×g for 15 min at 4°C. The harvested cells were washed with 30 ml of phosphate-buffered saline (PBS,pH 7.4; 0.2 g of KH2PO4 , 1.5 g of Na2HPO4•7H2O, 8.0 g of NaCl, and 0.2 g of KCl in 1 liter of distilled water), centrifuged as previously described, and resuspended in 30 ml of fresh PBS. The washed inoculum was serially diluted in PBS to obtain a target inoculation level of 6.0log CFU/g when 5 ml of washed cultures was added to 5 L fresh sterile PBS.

Produce and spinach inoculation

Fresh iceberg lettuce (Lactuca sativa L.) and baby spinach (Spinaciaoleracea L.) were obtained from a local fresh produce wholesale establishment and used within 2 hour before the experiment. Iceberg lettuce was manually shredded to 1.5-2.0 cm strips using a sterile knife about 2 hours prior to the washing.Baby spinach leaves (300 g) were completely immersed in the prepared inoculum solution and kept under manually constant agitation for 15 minutes. Inoculated spinach leaves were then drained in biosafety hood for 1 hour, and stored at 4oC in 20 g portions for 24 hour before treatment.

Preparation of chlorine solution and measurement of wash water quality

Achlorine wash solution with ~ 40.0 mg/L free chlorine was prepared by diluting 6% NaOCl (Clorox,Oakland, CA) into cold distilled water (5°C) and adjusted to pH of 6.8 with citric acid. The FCand total chlorine (TC) concentration of solutions after each washing cycle were measured with a commercial test systemincluding a DPD powder dispenser andchlorine photometer (CP-15, HF Scientific Inc., Ft. Myers, FL). Water quality characteristics of wash water, including pH, turbidity, oxidation-reduction potential (ORP), and COD, were determined using a digital pH meter (Fisher Scientific, Fair Lawn, NY), a portable turbidity meter (2020 WE, Fisher Scientific, Fair Lawn, NY), a digital ORPmeter (HI 98120, Hanna Instruments, Smithfield, RI), and a reactor digestion method (COD2 Mercury-Free COD Reagent, HACH company, Loveland, CO), respectively.

Produce washing process

One portion of inoculated spinach leaves (20g) was immerged in 20L of chlorinated washing solution, immediately followed by one portion of shredded lettuce (1,000g). Moderate manual stirring (~90 rpm/min) was applied to keep lettuce and spinach leaves completely submerged for 1 min. Spinach leaves and washed lettuces (10 g) were immediately sorted out from the wash container into a filtered stomacher bag. Wash water was immediately sampled into 50-ml centrifuge tubes, neutralized with sodium thiosulfate, and filtered (Whirl-Pak filter bag, Nasco, Modesto, CA) for water quality and microbial analyses. After all samples were taken, the remaining washed lettuce was removed and discarded. A second portion of inoculated spinach and non-inoculated lettuce were washed the same way in the same solution. A total of seven cycles of consecutive washing were conducted until free chlorine depleted (<0.5 ppm). The weight equivalent for lettuce for each washing (1,000 g) was 5% of that of the wash solution (20L). At the end of 7 washes, the accumulative produce to water ratio was 35%.

Microbiological analysis of wash water and produces

After every washing cycle, spinach, lettuce and water samples were collected to conduct microbial analysis. Spinach leaves (20 g) were placed in a Whirl-Pak filter bag (1627 ml, 19 × 30 cm, Nasco, Modesto, CA) with 100 ml of TSB and homogenized (Masticator, IUL Instruments, Barcelona, Spain) for 2 minutes. Serial tenfold dilutions of each sample, in PBS, were surface-plated onto tryptic soy agar (Acumedia, Lansing, MI) supplemented with 0.1% sodium pyruvate (Fisher Scientific, Fair Lawn, NY; TSAP) and sorbitol Mac-Conkey agar (BD, Franklin Lakes, NJ) with NaL (100-ppm) for enumeration of total bacterial populations and inoculated E. coli O157:H7, respectively. Colonies were counted manually after incubation at 35°C for 24 h. Triplicate 10-g lettuce after each washing cycle was also placed into a Whirl-Pak filter bag with 90 ml of TSB and homogenized for 2 min. The filtered 20 ml-water samples were immediately poured into 50-ml centrifuge tubes with 5 ml of 5×TSB plus 0.1% sodium pyruvate and sodium thiosulfate to dechlorinate residual chlorine. The pathogen survivals in lettuce and wash water were enumerated using a modified MPN method previously described. Briefly, eight aliquots (5 ml) from lettuce or water samples were added into an 8x6 deep-well microplate, 10-fold serial diluted in TSB, covered by a sterile foil paper, and incubated overnight (18-24 h) at 35°C. Turbidity of each well was recorded after incubation, and 3-μL of droplets from each well were arrayed onto MacConkey agar with NaL (100-ppm) and incubated at 37°C for 24h. The characteristic E. coli O157:H7 colonies were also confirmed by a rapid RIMTM latex agglutination assay (Remel Inc., Lenexa, KS). The growth pattern was recorded and calculated using an MPN calculator (VB-6 version).

Statistical analysis

The experiments were conducted with 4 replications.Water quality data including free chlorine, total chlorine,ORP, pH, turbidity, and COD, and microbiological data (survivors or reductions; converted to log CFU/g) were analyzed using theOne Way ANOVA in the GLM procedures of SAS (SAS Institute, 2002). Means and standard deviations for all data were calculated, and the mean differences were separated with the least significant difference procedure at a significance level of α=0.05.

Results and Discussion

Water quality variance during produce washing

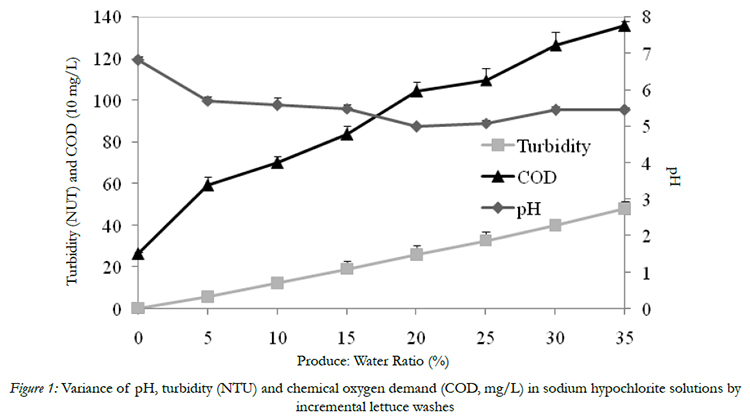

The initial pH, turbidity and COD of chlorinated water solution was 6.81, 0.4 NTU, and 265 mg/l, respectively,before introducing shredded iceberg lettuce and spinach (Fig 1). Wash water pH value decreased to 4.99 and returns to 5.45 by the end of 7 washing cycles (Fig 1). As expected, turbidity and COD value of wash water increased proportionally with increasing amount of fresh produce continuously introduced into wash water. By the end of the washing, the water turbidity reached 48 NTU was accompanied by COD increased to 1356 mg/l (Fig 1), which agreed with previous studies of Luo (2007) [14] and Luoet al. (2012) [15]. Turbidity indicates the wash water quality is associated with soil, debris, and organic matter. COD is used to indirectly determine organics amounts in wash waters. Both are important indexes for monitoring wash water quality during commercial fresh produce washing process. The increasing of turbidity and COD can be explained by the soil and debris from lettuce and spinach and their exudates entering into wash water.

---

---

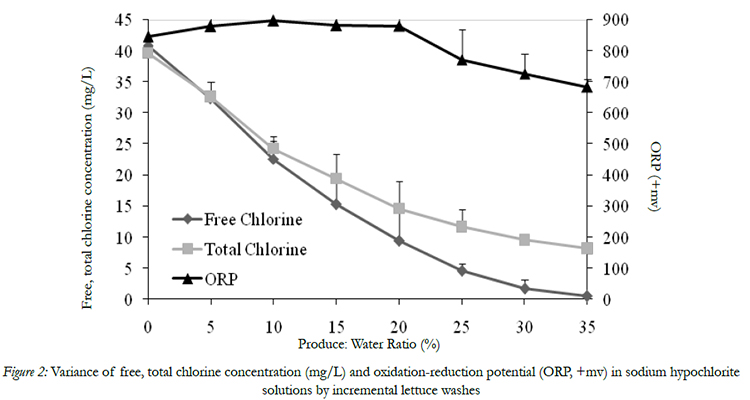

The initial FC and TC of wash water were 40.6 and 40.4 mg/l, respectively (Fig. 2). As shredded lettuce and spinach leaves were continuously washed in wash waters, the FC and TC concentration decreased significantly,and the final residual FC and TC concentration were 0.5 and 8.2 mg/L, respectively (Fig. 2). The dramatic decrease in FC and TC concentration with an increasing level of turbidity and COD during washing is due to the rapid interaction between chlorine and organic materials in wash water through oxidation, addition, and electrophilic substitution reactions [13]. In this study, it is noticed that the residual TC concentration is significantly higher than its corresponding residual FC after each washing cycle. This difference can be explained that FC refers to the amount of elemental chlorine gas (Cl2), hypochlorous acid and hypochlorite,whereas the TCalso included the concentration of residual NaOCl, chloramines, chloroform, and other chemical forms [16].

---

---

Oxidation-reduction potential (ORP), measured in millivolts (mV), is defined as the potential oxidation occurring at the anode and/or potential reduction occurring at the cathode of an electrochemical cell [17]. Many fresh-cut produce processors applied ORP level of their wash water system to determine the antimicrobial potential ability of their wash water. In this study,the ORP variance was also monitored during washing of produce. The initial ORP of chlorinated water was 846 mV, and it kept high voltage valuesranging from 846 to 896 mV when the FC decreased from 40 to 9.4 mg/L. The final ORP was still as high as 684 mV even though the FC decreased to below 0.5 mg/L (Fig.2). Thus, the ORP value is not a reliable indicator to monitor the FC concentration changes in wash water.

Pathogen survival in wash waters during continues washing

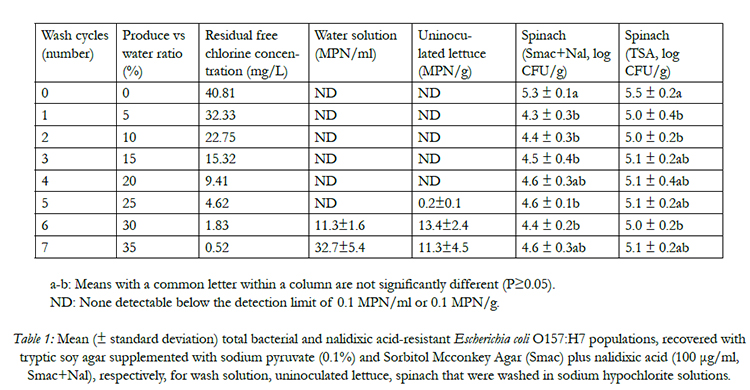

Survival of E. coli O157:H7 in wash wateris directly related to the amount of residual free chlorine during 7 washing cycles. E. coli O157:H7 cells were not recovered from the wash water when the residual free chlorine was more than 4.56 mg/L (Table 1), indicating that free chlorine is a strong sanitizing reagent for controlling E. coli O157:H7 in water. In a most recent study,the author reported that E. coli O157:H7, non-O157 STEC, or Salmonella spp. cells did not survive in chlorinated water with residual free chlorine concentrations more than 1.0 mg/L with animmediate contact time of 5-10 s [9]. Similar studies of Yang et al., (2013) [18], Luoet al. (2011) [19], and others [20, 21]also confirmed a rapid bactericidal effect of free chlorine in washing water. In this study, when the residual free chlorine concentration decreased to below 2.0 mg/L, even the ORP was above 720 mg/L, the pathogen started to survive in wash water, resulting a recovered population ranged from 11.3 to 32.3 MPN/ml (Table 1). In tomato and some produce processors, the option of maintaining an ORP value of 650 mv instead of measuring free chlorine was widely accepted as a reliable index to monitor wash water sanitizing effects [9]. However, the results of this study, in agreement with other studies [17, 22], questioned the reliability of applying ORP index as a proxy for the sanitizing effects of wash water.

---

---

E. coli O157:H7 cross-contamination

The transference of E. coli O157:H7 from contaminated lettuces or baby spinaches to un-contaminated clean produce when free chlorine was depleted in wash waters has been well documented in the studies of Allende et al.(2008) [12], and Luoet al.(2011) [19]; (2012) [15]. In the present study, it is noticeable that when the residual FC concentration was more than 9.4 mg/L, no E. coli O157:H7 cells were detected on fresh clean lettuces (Table 1). As shredded lettuce mixed with inoculated spinach was continuously introduced into chlorinated wash waters, the rapid increase of turbidity and COD caused a significant decline of FC concentration.When the FC concentration decreased to 0.54 to 4.56 mg/L, even though the ORP of water was more than 720 mv, the pathogen transferred from contaminated spinaches to fresh uninoculated lettuces, ranging from 0.15 to 13.41 MPN/g (Table 1). Previous study of Luoet al. 2011[19] found that 10 mg/L of residual free chlorine was sufficient to prevent crosscontamination of E. coli O157:H7 between contaminated and fresh clean lettuces. The required residual free chlorine concentration to prevent cross-contamination during lettuce washing is higher than that of wash water sanitization. It might be explained by pathogen cells are likely to be embedded in organic matters, and the accumulated organic materials in wash waters may protect them from exposure to sanitizers, allowing them to survive for a long time, and transfer to clean produce [12]. Once clean lettuces were attached with pathogens, a following-up washing will not inactivate the pathogen cells [23]. The findings from this study are important, because the current HACCP plan of chlorinated water sanitization applied by industry produce processers sets the critical control limit of available free chlorine level as ≥ 1 mg/L. Recently, a high amount of free chlorine (2-5 mg/L) in wash wateris being determined as a critical control limit and is ready to be applied.

E. coli O157:H7 reduction on spinaches

The overall total average E. coli O157:H7 inoculum level in control (unwashed) spinach leaves was 5.3 ± 0.1 log CFU/g. Total bacterial counts on TSA were similar (P≥0.05) to those observed on TSA+NaL for all washing cycles, indicating that the majority of colonies found on TSA were inoculated E. coli O157:H7. Washing of inoculated spinach and uninoculated lettuce caused overall pathogen reductions on spinaches by 0.7 to 0.9 log CFU/g among 7 washing cycles with FC concentration ranging from 0.5 to 40.8 mg/L. This result agrees with most other authors [24, 25], who reported that various chlorine concentrations have no effect on pathogen reductions. For most wash water chemical sanitizers, especially chlorinated water solution, pathogen reductions of 1-2 log CFU/unit were widely reported by both laboratory scale and pilot plant scale studies [11, 15]. This finding was slightly lower but close to the other researchers’ results, suggesting that pre-harvest decontamination approach is critical in prevention of pathogen contamination during produce processing, and simply relying on postharvest chlorinated water washing may fail to have any sanitizing effects.

In summary, water quality changedramatically during continuous produce washing process; the accumulated high organic loads severely limit chlorine inactivation of E. coli O157:H7 on produce and in wash-water. The results from this study verified that the pathogen reduction and cross-contamination prevention ability of chlorinated water depends on the available residual free chlorine concentration in wash solutionrather than the amount of chlorine initially dumping into wash water.Therefore, monitoring and maintaining an adequate level of FC during fresh-cut produce washing is extremely important for the control of pathogens in wash water and the prevention of cross-contamination.
