Application of The Bi-Level Stairs Climbing as Alternative of Respiratory Rehabilitation Training in Dyspneic Smokers

Keywords

Bi-Level Stairs Climbing; Dyspnea; Spirometry; Maximal Ventilation; Sub Maximal and Maximal Exercises, VO2, VE; VAT: Peak Work Rate; VT; HR; RR; Arterial Blood Pressure; SpO2.

Introduction

Structured exercise rehabilitation programs of six to eight weeks duration have been reported to improve quality of life, increase exercise tolerance, and boost maximal oxygen consumption (VO2max) by 20 to 40%.and endurance by 60% [3-5].

Significant benefits can be gained and maintained with just 45 minutes of daily maximal training on cycloergometry [3-5] for subjects with pulmonary problems, in respiratory rehabilitation centers. Unfortunately most people who cannot afford it at home, stop exercising after they leave medical care and assistance; thus reducing the achieved benefits [4, 5].

If motivation is left apart, equipments pricing and/or shortness of time can be easily faced with low-cost and low-tech alternatives such as just efficient walking, cycling, stairs climbing and/or using two-step stool [7]. Besides, many European chest physicians and oncologists often use stairs climbing to screen patients for impaired pulmonary function and subrogate of VO2max prior to surgery [8, 9].

Our team has developed a particular type of stairs climbing called “Bi-level Stairs climbing” (BiSC) [13] which will be used in this study. Its usefulness comes from its simplicity as it needs only one flight; it combines an ascent and descent phase timed; and during experimentation and teaching the patient, in the stairs of the rehabilitation center, it is easy for medical professionals to monitor and supervise the process and the patient as they watch him all along.

Existing protocols of stairs vary greatly though, and the lack of target reference values has limited its more widespread adoption discussed recently [6]. At present time, unfortunately no physiologic study on standardized bi-level endurance stairs has been yet published although some authors made some propositions for energy assessment during training sessions more for cicloergometry than for stairs [5, 7].

In order to bring a contribution to the questioning above, this paper reports: (a) The assessment of five clinical/functional values; (b) The analyze of the differences in percentage between “sub maximal” levels [13] of the BiSC “exercise endurance” in relation to the maximum level BiSC possible, in order to define the most favorable and sustainable protocol for training with BiSC [7]; (c) A procedure to help define which level of BiSC is the closest in terms of physical effort to the 30 minutes training sessions, (d) Comparing functional respiratory parameters with those of ventilatory anaerobic threshold (VAT) and peak work rate (PWR) on cycle ergometry, i.e. this can be called “the optimal stair climbing training program using BiSC”.

Methods

This study was approved by the institution’s ethics committee and was conducted according to Declaration of Helsinki standards. All studied subjects gave informed consent.

Unmedicated, voluntaries active male smokers were recruited [10]. A target sample size of 25 subjects was pre-determined to achieve 80% power. Inclusion criteria were: age 18 and older after 66 years, having normal body mass index (BMI), absence of bronchospasm based on European Community for Steel and Coal questionnaire and observation at rest and during exercise to VO2max on cycle ergometry [12]. Exclusion criteria were insufficient cardiopulmonary, neuromuscular, medical, or physical capacity to permit strenuous exercise, abnormal spirometry [12], chest radiographs, or electrocardiogram [5, 10, 11] evidence of bronchospasm, or not signing consent.

The maximum of three values was recorded only for slow vital capacity (VC), forced expiratory volume in the first second (FEV1), and maximum voluntary ventilation (MVV) were taken. Minute ventilation (VE), tidal volumes (VT), respiratory rate (RR) and respiratory exchange, that is, oxygen uptake (VO2) and carbon dioxide output (VCO2) [5, 7] were measured at the VAT and during the maximal exercise cycle ergometry protocol PWR, 30W/3min, by Jaeger’s Oxycon Champion (Jaeger GmdH & Co., Wurzburg, Germany), calibrated before and after each use [5,11]. A bronchodilator (i.e. Salbutamol 0.2 mg) was administered for a second round of measurements to establish any effect of bronchodilatation.

Maximal cycle ergometry (1000S, Medifit Inc, Maarn, The Netherlands) was undertaken for all subjects at increments of 30 watts/3 minute with the subjects on a cardiac monitor (Multiscriptor EK; Hellige-France Inc, Strasbourg, France) [5, 11]. The PWR was that achieved during the last full 3 min before exhaustion and the VAT was determined [5, 11]. The VO2max was recorded as the VO2 over the last 30 sec before exhaustion [5, 11]. Oxygen pulse (O2P=VO2/HR) was calculated at rest and at each ergometry increment. Exertional Dyspnea (ED), leg pain (LP) [12], pulse Oxymetry saturation (SpO2) and heart rate (HR) were monitored (Biox Pulse Oximeter; Ohmeda, Louisville, CO).

Exertional dyspnea and leg pain were measured by modified Borg scale [12], a 0-10 Liker scale with 10 representing most severe [12]. They were measured after each flight increment of BiSC, and after the cycle exercise to VAT and to PWR [5].

Bi-level Stairs climbing (BiSC) [13], after the VO2max was determined by cycle ergometry, 1 to 3 days later the 25 consenting subjects performed the BiSC over maximal Floors (BiSC-10) [13]. A 1-story building was used with uniform 3 meter flights with handrails. There were 20 steps per flight with steps of 15 cm in height and 25 cm in breadth. The subjects were instructed to climb until exhaustion for the BiSC max. The BiSC stair climbing rate was standardized to 12 sec per flight [11, 13] paced by metronome [7, 13]. For BiSC, the flights were also descended in 8 sec paced by metronome and followed by 10 sec of rest for clinical assessment, for 30 sec total per flight. The total numbers of consecutive flights settle for each protocol was record [13]. Arterial Blood pressures were measured at the end of all maximal tests. A specialized physiatrist and a physiotherapist collected the data during the rest periods [13].

How to use the Bi-level Stairs climbing as a respiratory rehabilitation alternative?. Since the protocol with the best outcomes observed recently was the BiSC-10 [13] and every subject could negotiate nine sub maximal flights [13], it was studied for its aerobic training potential over a sub maximal flight for maintenance exercise training. In the sub maximal flight BiSC-5 protocol (Figure 1), the subjects climbed and descended a single flight in 20 sec plus 10 s for measurements of the five variables with a total of 30s per flight, as the sub maximal level and maximal times (i.e. one cycle), climbing and down one floor, with 1 minute rest periods between the five flights repetitions of each cycles [11, 13]. The number of cycles indicates repeating the sub-maximal series climbing and down as the represented number, for instance the series 5 indicates climbing and down five consecutive floors, and so on for the progressive floor until the last supported series, wherever the subjects repeated the numbers of Flights [13]. (See later on the results).

After obtaining the mean values of the five variables in the ten series, the second step will be to know which of those five variables, isolated or associated, can guide to choose the most suitable and best supported level of training for the subjects concerned. To do this, the values of ratios of each submaximal series related to maximum, and expressed in percents, will be calculated. Those ratios are then compared with their respective correspondent values of VAT and PWR obtained on cycle ergometry [11,20-22]. in order to determine which parameter is best adapted.

Statistical Analysis

The measured responses were summarized as means and standard deviations or medians and interquartile ranges (IQR) based on the data distribution [14]. T-test and Wilcoxon test for independent variables were used to compare BiSC-10 and BiSC-5 data [14]. Statistical significance was set at p<0.05. The arterial blood pressure and heart rate values at rest, after the 10th floor of the BiSC- 10, and both at BiSC-5th floors: 1) as a test, or 2) as 30 min session training; and also at PWR of the incremental cycle ergometry, were compared. The means were also estimated by means of confidence intervals at 95%. All statistical analyses were performed using the R package, version 3.0.1 (R Development Core Team, 2013) [15].

Results

At rest, at the baseline, the mean values for HR are: 84 ± 4.35 pulsations per minute; for peripheral saturation, SpO2=95% ± 0.74, and for RR = 23 ± 3.4 breaths/min. All subjects could perform the selected BiSC-5 during 30 minutes session training.

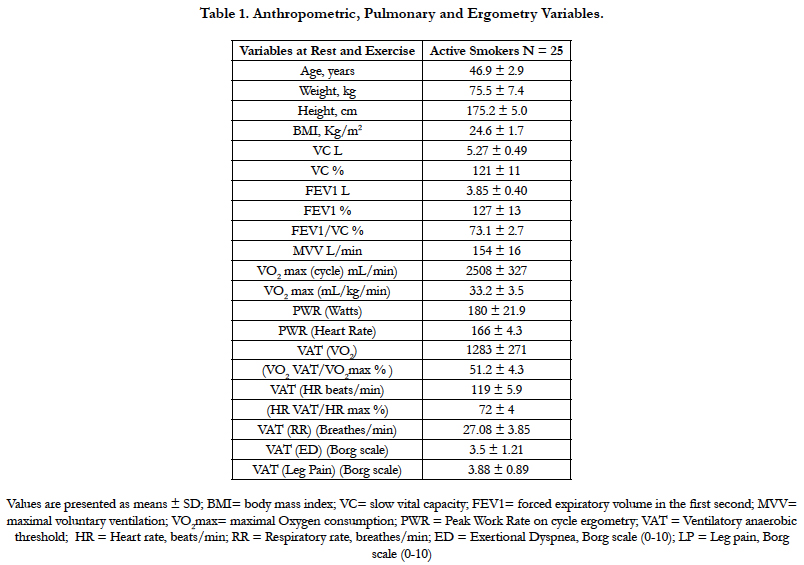

Table 1 shows the statistical description of the sample: i.e. means and standard deviations of their physical characteristics and age; the BMI values indicate that there are no obese in the group. The spirographic values are in the normal range; however that of VO2max and of ventilatory anaerobic threshold (VAT) are reduced.

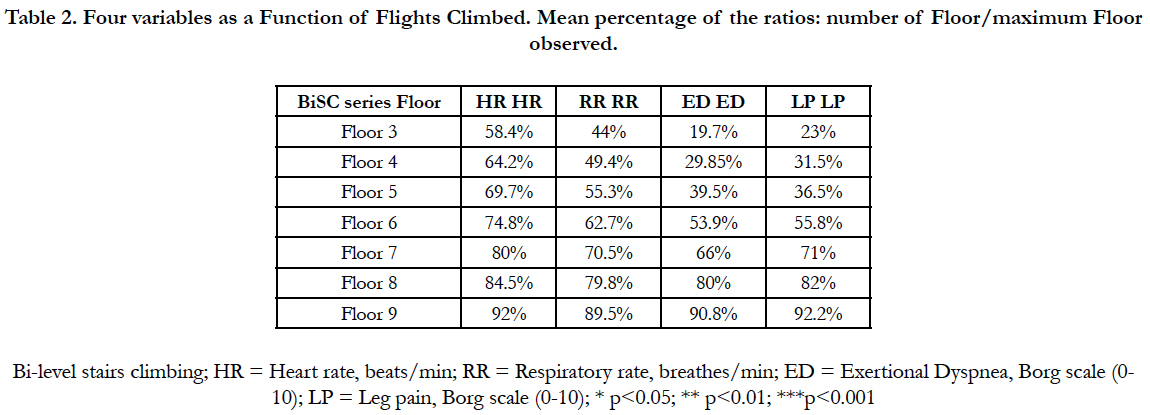

Table 2: Illustrates the mean percentage values of the four variables as a Function of Flights Climbed in percentage of the ratios observed. It also shows the comparisons between the four variables of the BiSC-10 with two submaximal BiSC-5 as a test and as a 30 min session training. It could be seen that exertional dyspnea and leg pain were significantly lower (p<0.05), during the submaximal BiSC-5 over 5 flights, than for the BiSC-10 flights, as well as the comparison of the heart rate and breathing rate. The two sub maximal BiSC-5 have significantly lower HR and RR than those of maximal BiSC-10 (p<0.05), However, the ratio HR at the BiSC-5 training over HR of the BiSC-10 is significantly higher (69.7 %, p<0.05).

---

---

---

---

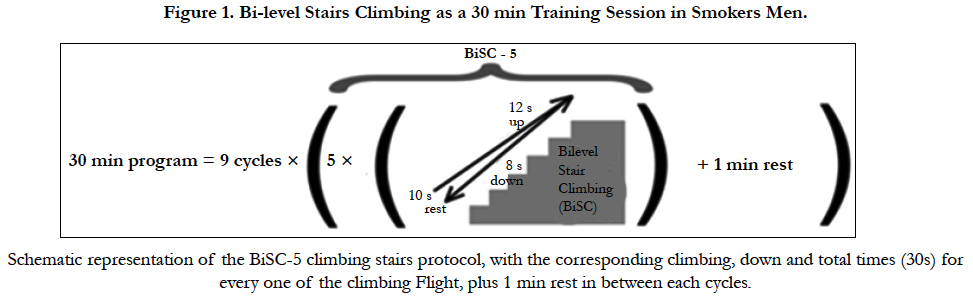

Figure 1 shows a Schematic representation of the BiSC-5 climbing stairs protocol, with the corresponding climbing, down and total times (30s) for every one of the climbing Flight, plus 1 min rest in between the nine cycles.

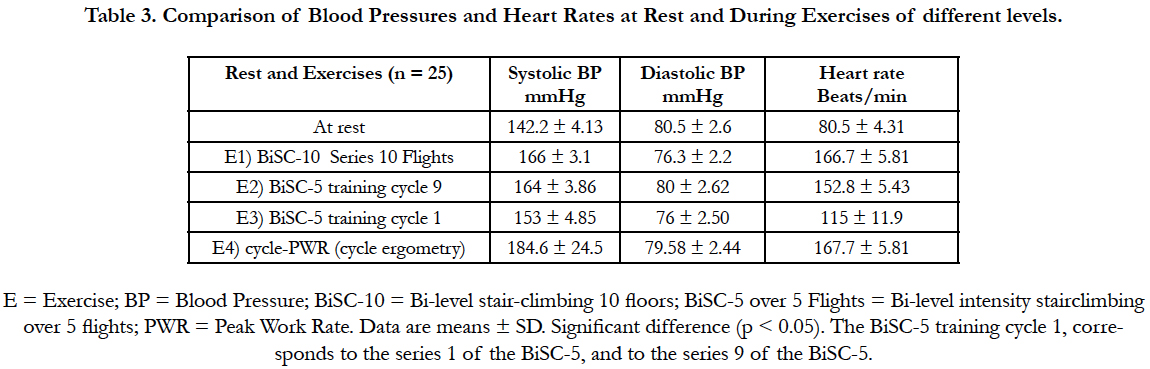

Table 3 presents the comparisons between the arterial blood pressures and heart rate during exercises at different levels of exertion. It was observed that: (1) BiSC-10 over PWR, the three variables are significantly lowers for the BiSC-10 (p<0.05); (2) The BiSC-5 training at its 9th cycle over PWR, only the systolic AP and the HR are lowers on the 9 cycle (p<0.05); (3) On BiSC-5 training, the cycle 1 over the cycle 9, the three variables are significantly lowers at the first cycle (p<0.05). The highest values of arterial pressure are on the PWR.

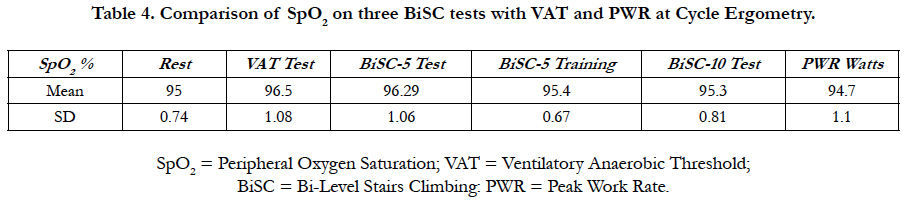

Table 4 shows the comparisons of the mean and standard deviation of the peripheral O2 saturation (SpO2) during the three tests of Bi-SC: BiSC-5 as test; and BiSC-5 as a 30 min session training; and maximal BiSC-10; also during the Ventilatory anaerobic threshold and PWR measured by cycle ergometry (30W/3 min).

---

---

---

---

---

---

Discussion

The objectives of this study were to assess the possibility to achieve a training session of 30 minutes with a sub maximal Bilevel Stairs climbing [13]. The results observed confirm that the behavior of the five variables suggest that the following three objectives have been validated:

[a.] The subjects were able to achieve the ten sets of stairs (Table 2).
[b.] Based on these data, it could be objectively establish the selection of the level of targeted training (Table 2).
[c.] All subjects were able to achieve the nine cycles of 30 minutes session with the BiSC-5, almost aerobically (Tables 2 and 3).

For obvious reasons, the set levels 1-4 are excluded for the session training because they are in fact rather submaximal aerobic level, and easy to accomplish. On the contrary, in the sets of 7-10 most variables are above between 70 and 80% of the maximum level which excludes them for their anaerobic state during the 30 minute session [10, 11]. Consequently, only five and six cycles (Table 2) will be analyzed, to know which of them have a better approach close to the ventilatory anaerobic threshold (VAT), that is the ratios over the tenth cycle with the more physiologic submaximal aerobic and favorable performance.

From Table 2 it appears, as a result, that the set 5 is the best that suits this analysis: three of these variables are below 55%. Ratio analysis shows that, for the five series, respiratory rate is lower and, both subjective variables (ED and LP) are below 40%. Finally, the SpO2 is in the normal range, susgesting clear aerobiosis. However, only the HR seems moderately high, but still showing that there is 30% of the heart rate reserve (Tables 2 and 3). Even so, comparing the average values of the 5 Series for the HR (Table 2), with that of ventilatory anaerobic Threshold (Table 1), the difference is not significative. In addition, the mean values of ED is 19% lower and the LP is only 10% higher than these of VAT. Doubt on the energétique target level between sets 5 and 6, has guided our choice on the Series 5 (Tables 2 and 3). Thus, level-5 story was the one that most corresponded with percentages measured in ventilatory anaerobic threshold, so it could be used for demostration (Tables 2 and 3). Table 2 illustrates that there are a discrete difference, for the four variables (p<0.05) in between both submaximal BiSC-5 (test and training). In addition the Leg Pain is, frequently, significantly higher than the Exertional Dyspnea (p<0.01). The differences are higher between the BiSC-10 with both submaximal levels (BiSC-5 test and BiSC-5 session training, p<0.001). So we followed the description seen in Figure 1 for the training session with the series BiSC-5.

Moreover, on the BiSC-5 training sessions, no subjects’ exercise parameters exceeded acceptable targets; 5 flights of BiSC-5 was well tolerated by all subjects; and the energy output achieved corresponded well with previously and actually described cycling exercise, that achieved ventilatory anaerobic threshold protocol (VAT, Table 1) [5, 13]. Thus, the BiSC-5 session training is safe and easy to understand, and is an aerobic session of training.

Also, achieving 69% of the heart rate, observed at the VO2max, demonstrates that maximal stair climbing training during 30 minutes can be individual high intensity exercise (Tables 2 and 3). Besides, the arterial pressure, systolic and diastolic, were also roughly in the order of these values, thus, it was better tolerated and achieved aerobic training levels at higher respiratory rates (p<0.05).

Stair climbing can provide aerobic training without specialized equipment [16-19] and has been recommended to alleviate America’s and Europe’s obesity epidemic [1, 6, 9, 17]. However, studies to date have been limited by heterogeneity of stair (as “material for measurement on terms of intensity and altitude”) and as climbing protocols, because of inadequate control of confounding factors [9, 17-19]. This study overcame some of these limitations. First, the BiSC is original [13], and is proposed as test and as a session of stairs training; Second, this was a homogenous group of 25 highly motivated unmedicated active male smokers, of similar age and health status, with similarly low maximal exercise capacity because of the smoking [5, 11]. Third, there were strict inclusion and exclusion criteria. Four, The subjects were methodically instructed and the exercise strictly regimented [5, 11]. Five, individual VO2max and Ventilatory anaerobic Threshold parameters were verified by cycle ergometry. Six, a fixed stair climbing rate was implemented [7, 11]. Seven, in addition, the protocols were repeated to ensure good reproducibility [11, 13].

Bi-level cycling exercises have been reported to achieve greater VE and VO2 in healthy subjects [11, 20-23], chronic obstructive pulmonary disease (COPD) [11, 22, 26], and in pulmonary [26] and cardiac [23] transplant patients [23-26], than has fixed intensity exercise [23-26]. Our previous comparisons of maximal BiSC-10 over ten flights max with the continuous FiSC-8 over 8 flights max [13] were consistent with this but BiSC-10, and especially BiSC-5 over 5 flights, had a particularly desirable cardiovascular profile [7, 10, 11] and was best tolerated [10].

Similar to Bi-level SWEET [20-23], BiSC-5 over 5 floors training involves brief intervals of positive work (i.e., 12 seconds of ascend), negative work (i.e., 8 seconds of descend) and produces a high respiratory rate (Table 2). The energy expenditure for BiSC-5 over 5 floors for 30 minutes (82.5 kJ or 1.10 kJ/kg is only 11.6% that of SWEET for 45 minute (713 kJ or 10.18 kJ/kg, i.e. by cycle-ergometry) [11, 22] so individuals should be able to easily maintain their conditioning using either BiSC-5 over 5 floors or the SWEET [5, 22, 23]. Even maximal BiSC-10 over 10 flights was done at lower heart rate than reported values of exercise to VO2max or PWR (Table 3) [5, 11, 22, 26].

Six minute walks, too, is often used to estimate aerobic exercise capacity [27, 28]. Continuous walking has also been recommended by some health professionals for endurance training [6]. However, 6 minute walk studies have up to 42% variability [7, 27, 28] and have not been standardized for endurance training because the speed was not evaluate.

Many studies on stair climbing have been analyzed and they all suffer from lack of standardizing way to use the stairs [29]. Some attempts have been made such as the most frequently used Stair Climbing Test (SCT) developed for the first time in 1955. Many authors have developed their own variation of it, (like BISC used for dyspneic smokers [13]) [29].

The physical condition of each subject enrolled is first checked for safety and acceptability to perform the stair exercises (in terms of intensity and time). Indeed the first phase of the process, is to obtain their maximum peak work rates. The maximum peak work rates are measured at the hospital through cycle ergometry test. Subject with severe manifestations of coronary heart disease are excluded from the study.

The results and conclusion of this work concern the determination of a « best, safe, and optimal » training program, using stair climbing technique, for a group of ordinary smokers. Finally, this study have esteemed the indications of measuring treatment fidelity in respiratory rehabilitation by Hildebrand et al., [31].

Conclusion

BiSC-5 program over 5 floors may be useful to provide economical, effective aerobic exercise for smokers with Dyspnea and normal spirometry.
