Thermal Hot Spots in Cities as Hazards for Health Security: An Application for the Urban Agglomeration of Athens, Greece

Keywords

Health Security; Thermal Hot Spots; Health Security; Cities; Hazards.

Introduction

The thermal environment is a significant part of the urban environment; it is a reflection of the surface and atmosphere energy balance as well as of the energy fluxes in between the surface and the atmosphere close to the surface. The state of the thermal environment may be described with the use of air temperatures (at 2m from the ground) and land surface temperatures. The latter have a strong impact on the prevailing air temperatures locally, especially within urban areas.

Epidemiologic studies show that high temperatures are related to mortality and that older persons are especially susceptible to the adverse effects of heat [1-4]. In particular, heat-health relationships in urban areas have been studied extensively worldwide and these studies observed a U-, V- or J-shaped temperature-mortality relationship [1-3, 5, 6]. The adverse effect of extreme heat on mortality is exemplified by the 2003 European heat wave [7], when more than 70,000 additional deaths occurred.

The increasing urbanization of cities projected for the coming decades [8] is an important concern for health security, as air and surface temperatures are expected to increase further and the urban heat island strength to be intensified [9]. To this end, the analysis of the thermal environment in cities is important for building thermal resilience plans [10] for health security. Of particular concern are areas in the cities where higher than average (surface and air) temperatures are systematically observed. The recognition of such areas is important as they reflect areas where photochemical pollution may increase [11] and where immediate interventions are necessary to ameliorate the thermal environment and thus protect the health of the city dwellers. Furthermore quantifying the impact of heat on health security supports public health authorities for a coordinated heat response and in designing heat-resilient adaptations to housing and urban design.

Methodology

Land surface temperature (LST) is a key parameter for assessing the thermal environment in urban areas. Despite ground measurements, LST may be also estimated with the use of satellite data in the thermal infrared part of the electromagnetic spectrum [12-13], a fact which takes advantage of the high spatial resolution of the satellite sensor. In this study, the methodology to define hot spots in the city of Athens, is based on the use of Landsat 8 satellite images (of spatial resolution 120m) during summer, for days with similar synoptic conditions. The methodology observes the following steps:

Step 1. Classification of land cover for the greater Athens area in eleven classes (Figure 1). The classification is considered necessary so as to link LSTs with the type of land cover.

×

Figure 1

Close

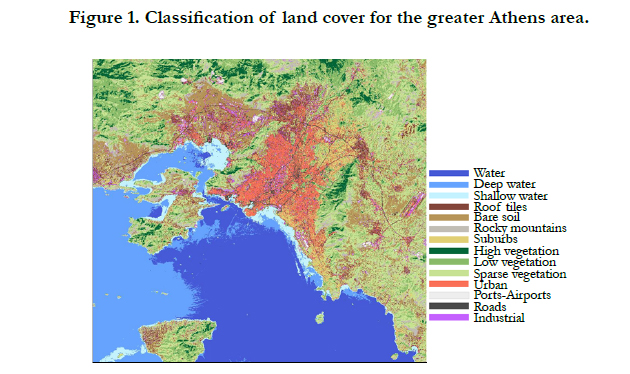

Figure 1. Classification of land cover for the greater Athens area.

Step 2. Estimation of an average LST field for summer (Figure 2). LST values refer to the scale to the right of Figure 2, whereas air temperatures as measured at the ground based stations at the same acquisition time with the Landsat images, are presented as a second layer (black: urban; green: suburban; red: rural). For the estimation of the land surface temperature (LST) the algorithm (Eq.1) was used [14]. It is a generalized single-channel method in order to retrieve LST from only one thermal channel.

×

Figure 2

Close

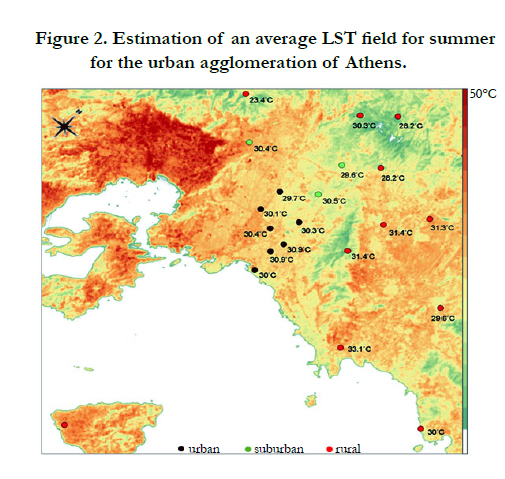

Figure 2. Estimation of an average LST field for summer for the urban agglomeration of Athens.

where Ls is the at-sensor radiance, ε is the surface emissivity, γ and δ are two parameters dependent on the Planck’s function, ψ1 is the reverse of the atmospheric transmissivity (1/τ), ψ2 depends on the upwelling and downwelling atmospheric radiances and ψ3 equals the downwelling atmospheric radiance.

Step 3. Estimation of LST zone statistics analysis (max, min and mean values) for the classes urban, suburban and industrial. As seen in Table 1, higher average LSTs are observed in the industrial and urban areas. It should be also noted that LSTs are considerable higher compared to air temperatures (on the average around 30 deg Celcius) at the same areas and observation times.

×

Table 1

Close

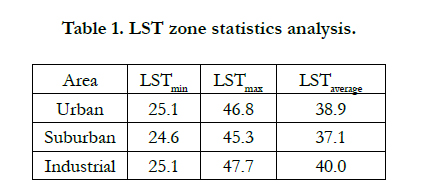

Table 1. LST zone statistics analysis.

Step 4. Identification of hot spots in the city of Athens. The manual interpretation of the LST images, has showed that a local threshold of 44˚C may be defined for the identification of hot spots. Thus an area with LST consistently above the threshold value is considered as urban hot spot. As expected hot spots are recognized in areas with such land cover as urban and industrial (Figures 3a and 3b). Vegetated areas such as urban parks are found with lower temperatures, although they are located near the aforementioned areas. Figure 4 provides a closer look to the areas concerned.

×

Figure 3

Close

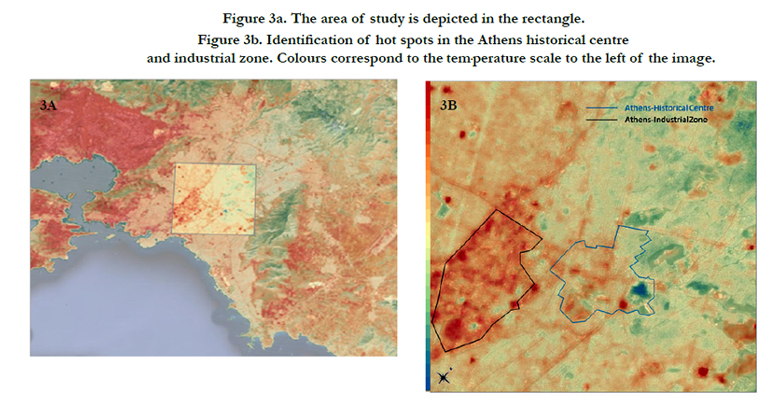

Figure 3a. The area of study is depicted in the rectangle. Figure 3b. Identification of hot spots in the Athens historical centre and industrial zone. Colours correspond to the temperature scale to the left of the image.

Conclusion

As seen in Figure 4 (a, b), several hot spots are identified within the city of Athens and particularly within the historical centre and the industrial zone of Athens. On the contrary, hot spots are not identified in the green areas of Athens and in the northern suburbs as LST is much lower. Results allow a detailed view of the thermal characteristics of an urban area (at a grid of 120m x 120m) in conjunction with the respective site-specific land cover types. To this end they (a) support the recognition of areas in the city where health security may be in pressure and (b) support the development of focused and differentiated interventions in the city so as to ameliorate heat stress in the areas where hot spots are identified and thus improve health security.

×

Figure 4

Close

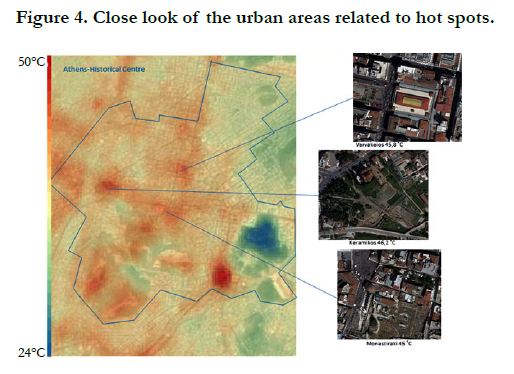

Figure 4. Close look of the urban areas related to hot spots.
