Keywords

Paraphenylenediamine; Acute poisoning; Detection; HPLC-DAD.

Introduction

Para-phenylenediamine (PPD) is an azo dye intermediate used for dying furs, photochemical measurements, as a photographic developing agent, as an intermediate in manufacture of antioxidants and as accelerators for rubbers. In some African and Asian countries, this chemical is used alone or in combination with Henna for dyeing of hair and skin [1-3]. Unfortunately, a vast numbers of suicidal, homicidal and accidental poisoning cases involving PPD were recorded [4-6].

Poisoning symptoms after oral intake include vomiting, epigastralgia,edema of the face, neck and pharynx, dyspnea, acute renal failure, rhabdomyolysis, hemolysis, methemoglobinemia, hepatic disorders and others can occur [7, 8]. In 20 fatal p-phenylenediamine poisoning cases, convulsion, facial edema and cyanosis were characteristic, and edemas of the epiglottis and vocal folds were observed in all cases [9].

PPD is rapidly absorbed into blood through mucous membranes of the digestive tract after its oral intake, and metabolized into quinonediimine, which acts as a cytotoxin. It is acetylated into Nacetyl-PPD and N,N-diacetyl-PPD as the major metabolites for detoxification to be excreted into urine [10-12].

PPD has been detected in blood, urine and gastric content by gas chromatography–mass spectrometry (GC–MS) after liquid–liquid extraction [13, 14]. Methods involving liquid chromatography (LC) with electrochemical detector [15], ultraviolet [15], diode array [16], or MS detection [17] for quantification of PPD and its metabolites in urine and keratinocyte cell were also reported.

The aim of this study was to determine the number of PPDrelated deaths in Upper Egypt between the years 2007–2012 detail the demography and toxicology findings, and also compare PPD death rates for those years. In addition, a method for extraction and screening of PPD in biological samples by HPLC-DAD was developed.

Material and Methods

Chemicals

All solvents were chemical grade from Sigma. PPD and aniline (internal standard, IS) (>98%) were purchased from Merck. Dichloromethane (98%), acetonitrile (99.9%), ammonium hydroxide (33%) and potassium dihydrogen phosphate (98-100.5%) were purchased from Sigma-aldrich (Germany). Blank human blood was obtained from Blood Transfusion Service (Sohag University Hospital). Ethical approval from the local ethical review committee was obtained for the use of this blood.

Detection of PPD by HPLC-DAD

For urine samples, 0.5 ml are hydrolysed in 0.5 ml, 12N HCl for 1 h at 100 0C and alkalized with conc. ammonium hydroxide. For liver, 1.0 grm is homogenized in 5 mL water.

To 0.25 mL hydrolysed urine, 1.0 mL blood or 1.0 mL homogenized liver were added 100 μL of 100 µg/mL aniline (IS), 0.25 mL of conc. ammonium hydroxide (33%) and 6.0 mL of dichloromethane.The tubes were then mixed at the rate of 40 rpm for 20-minutes and centrifuged at 3200 rpm for 5-minutes. The organic layer was transferred to a second 10-mL polypropylene tube containing 0.5 mL of 1.0 M hydrochloric acid. The tubes were then vortex mixed for 5-minutes and centrifuged at 3200 rpm for 5-minutes. The organic layer was discarded. To the remaining aqueous solution, 150 µL of conc. ammonium hydroxide and 2.0 mL of dichloromethane were added. The tubes were then centrifuged at 3200 rpm for 5-minutes. The organic layer was transferred to 5-mL glass tubes and evaporated to dryness. The dried extracts were reconstituted in mobile phase, vortex mixed for 30-seconds and 100 μL was injected into the HPLC system.

The HPLC instrument (Agilent; USA) consisted of an Agilent technologies 1200 series quaternary pump combined with an Agilent 1200 series photo diode array detector (USA), an Agilent 1200 series vacuum degasser (USA) and an Agilent autosampler injector. Chromatographic separation was performed on a Zorbax eclips-C18 (150 mm ×4.6 mm, 5 µm) column (USA) maintained at 25°C. The mobile phase consisted of acetonitrile:buffer (0.01M) potassium dihydrogenphosphate (20:80, v/v), adjusted to pH 5.0 with 0.1 M sodium hydroxide and a flow rate of 1.0 mL/ min. The detector was set to scan from 200 to 800 nm and had a discrete channel set at 240 nm.

Cases

Eighty-four cases of fatal acute PPD poisoning were admitted to Upper Egypt hospitals (Assiut, Sohag, Luxor, Qena, Aswan) for evaluation and management within the period 2007-2012. Full autopsies were investigated by the Office of the Chief Medical Examiner, Medico-legal department, Ministry of justice. Blood, urine, gastric contents, liver and kidney samples were taken for routine clinical and forensic toxicological testing. The history, clinical manifestations and management were obtained from the clinical sheets of the cases from the receiving hospitals.

Results and Discussion

Case studies
In the present study 84 decedents intoxicated by PPD and admitted to some Upper Egypt hospitals have been recorded. The data including: sex, age, residence, manner of toxicity, time and cause of death, were studied statistically.

The highest number of toxic cases (31%) was recorded in year 2010 as illustrated in Figure 1. This may be referred to the events of the revolution of Jan. 25 2011 which is diverting the attention of Egyptians. Concerning the number of PPD toxic cases in relation to governorate it has been found that the highest numbers were in Qena, Luxor and Sohag cities, respectively while less numbers were found in Aswan and Assiut cities as shown in Figure 2. This can be explained by the fact that the use of PPD as a hair dye and as a cosmetic differs in popularity in different residences where it is highly used in South Valley governorates.

×

Figure1:

Close

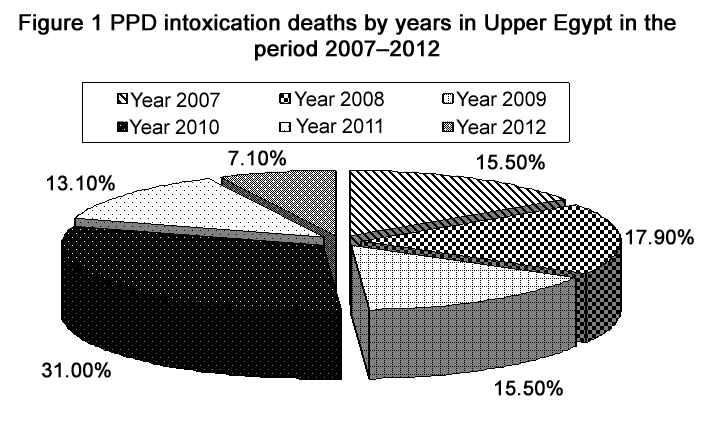

Figure 1 PPD intoxication deaths by years in Upper Egypt in the period 2007–2012.

×

Figure2:

Close

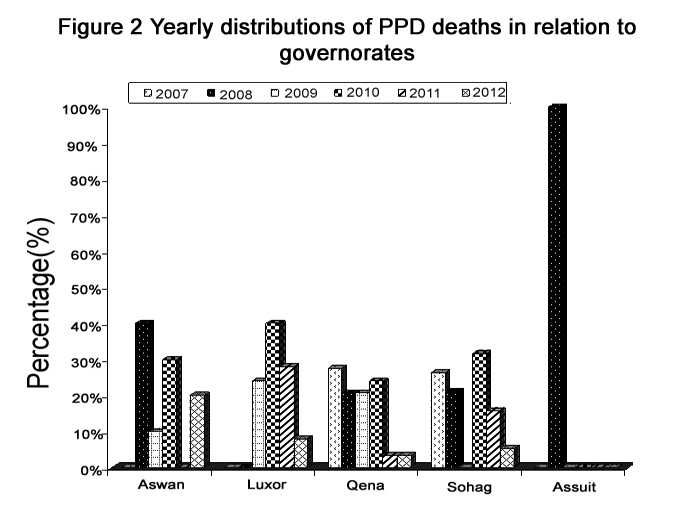

Figure 2. Yearly distributions of PPD deaths in relation to governorates.

The relationship between the gender and the number of toxic cases in different governorates is shown in Figure 3, where the number of females was higher than that of males (67.9%) and (32.1%) respectively. This referred to the close relationship between females and cosmetics in general and the cheapness of this stone making it in the reach of their hands. Figure 4 shows the relationship between residence and number of toxic cases. The number of toxic cases was significantly higher in rural areas than urban areas. This was due to the more use of the black rock for cosmoses in rural areas.

×

Figure3:

Close

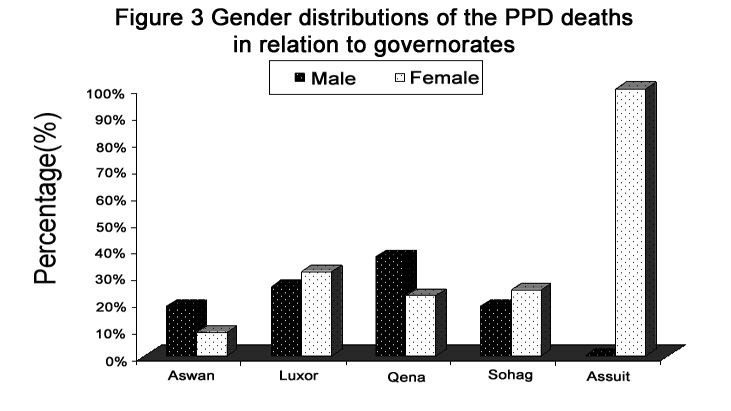

Figure 3. Gender distributions of the PPD deaths in relation to governorates.

×

Figure4:

Close

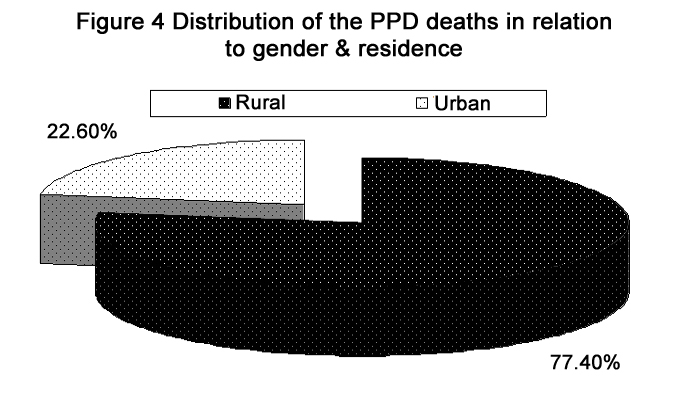

Figure 4. Distribution of the PPD deaths in relation to gender & residence.

Concerning the manner of death, the suicidal cases were the highest (91.7%) followed by homicidal (7.1%) and lastly accidental (1.2%) as shown in Figure 5. The causes of committing that crime were mainly due to psychological problems, financial causes and illegal pregnancy respectively as illustrated in Figure 6.

×

Figure5:

Close

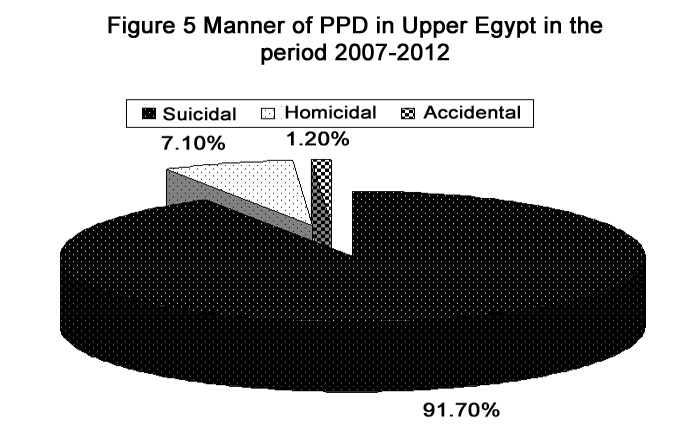

Figure 5. Manner of PPD in Upper Egypt in the period 2007-2012.

×

Figure6:

Close

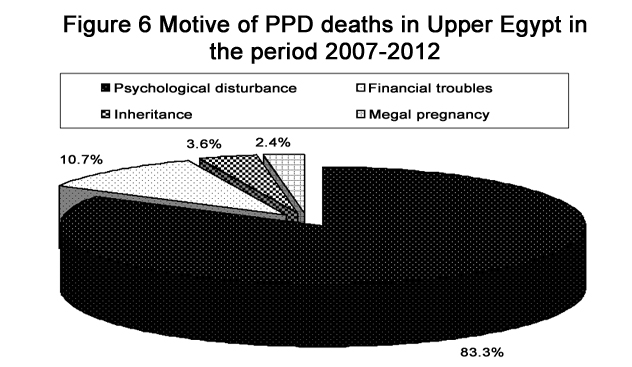

Figure 6. Motive of PPD deaths in Upper Egypt in the period 2007-2012.

The most common cause of death was renal failure (67.9 %) followed by asphyxia (22.6 %), ventricular fibrillation (9.5 %) then circulatory failure (6 %.), as presented in Figure 7. Renal failure had been developed most probably due to dehydration, shock and rhabdomyolysis and the direct nephrotoxicity of PPD.

×

Figure7:

Close

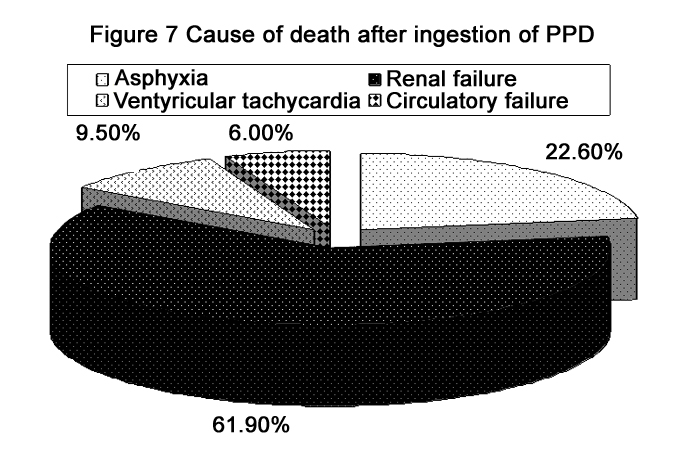

Figure 7. Cause of death after ingestion of PPD.

Toxicological analysis

The presented extraction procedure offers a rapid way to isolate PPD from the biological samples whereas extraction with dichloromethane in the presence of ammonia and subsequent purification by back-extraction into hydrochloric acid results a clean HPLC chromatograms and excellent peak shape for PPD and internal standard. The limit of detection of PPD was 0.25 µg/mL based on signal-to-noise ratio ≥ 3 (determined by peak height).Figures 8 and 9 show HPLC chromatograms for the analysis of a) blank blood and urine samples b) spiked samples with PPD and c) human urine and blood samples collected from autopsy cases related to PPD. The peaks for PPD and IS were also investigated by photo-diode array detector and found to be pure (peak purity more than 999).

×

Figure8:

Close

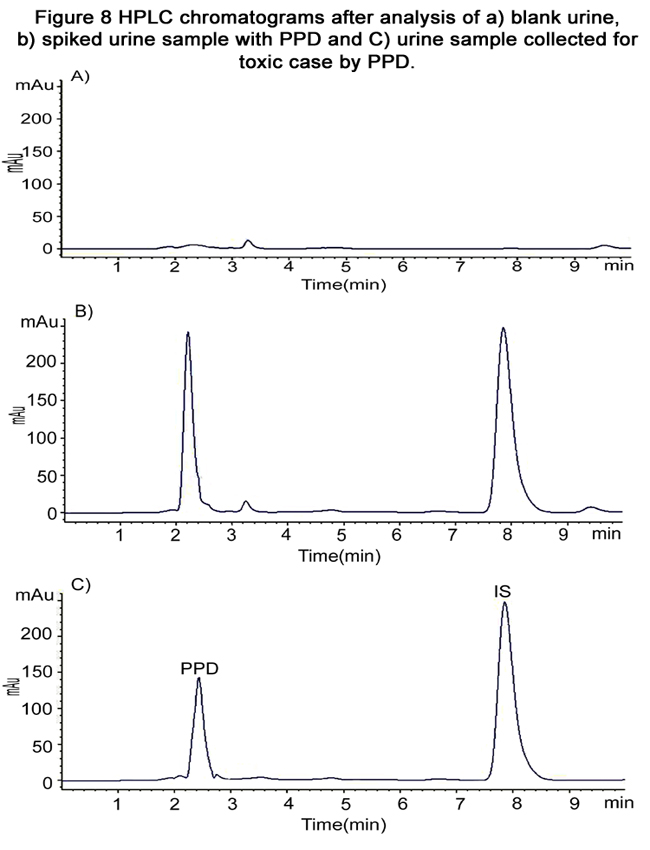

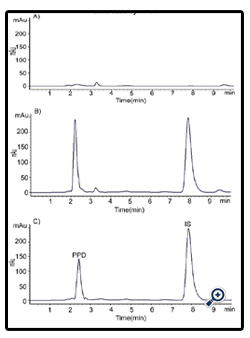

Figure 8. HPLC chromatograms after analysis of a) blank urine, b) spiked urine sample with PPD and C) urine sample collected for toxic case by PPD.

×

Figure9:

Close

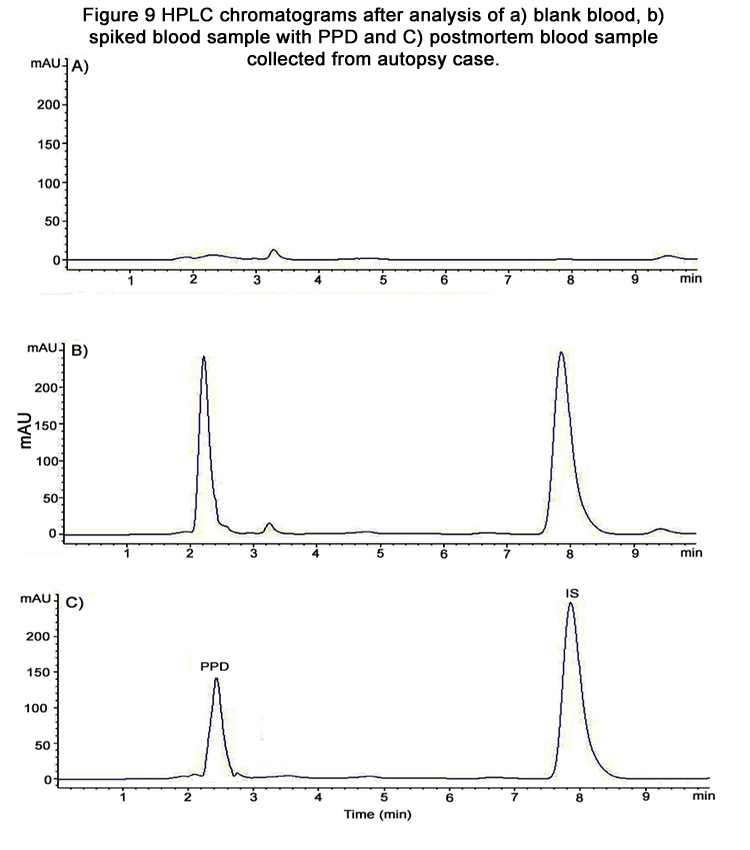

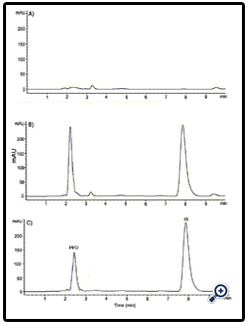

Figure 9. HPLC chromatograms after analysis of a) blank blood, b) spiked blood sample with PPD and C) postmortem blood sample collected from autopsy case.

Urine samples was digested with hydrochloric acid prior of extraction due to the main metabolite N,N-diacetyl-PPD presents in high concentration level in urine sample [15].

Quantification of PPD in blood and urine samples was checked by the present method. Critical degradation was found during and after extraction, moreover PPD was unstable in biological samples, this due to the auto-oxidation of PPD by air and light [18-19]. Therefor this method is only used for screening of PPD in biological samples.

Conclusion

In conclusion, further studies must be done to fined effective antidotes against that aggressive rapidly killing poison. A programme of public education and restriction of PPD is urgently required in Qena and other affected nations. An educational programe directed to the physicians in the affected areas to increase awareness of the urgency of early hemodialysis for saving the toxic cases.
